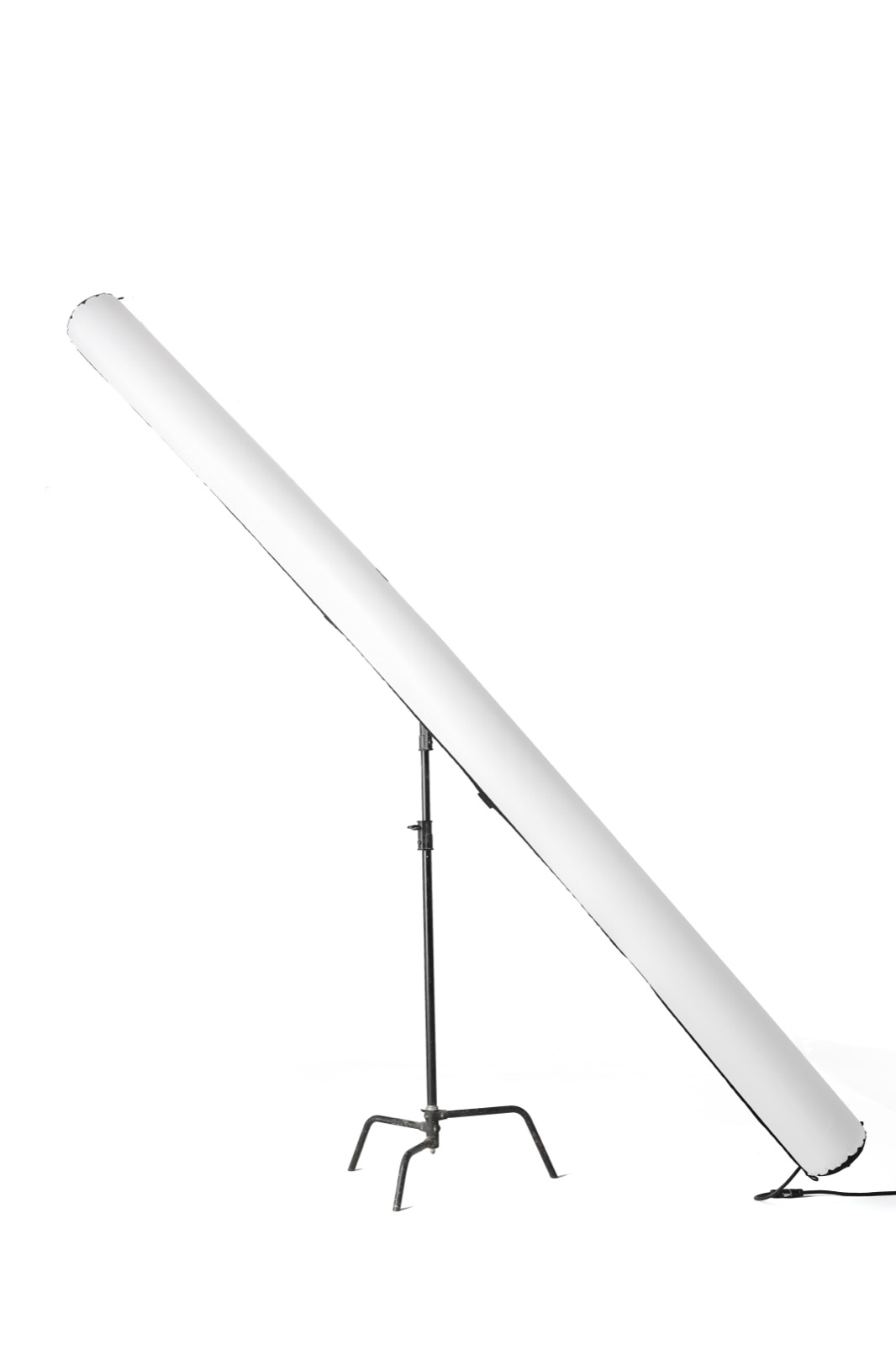

Air Lux MAX Series

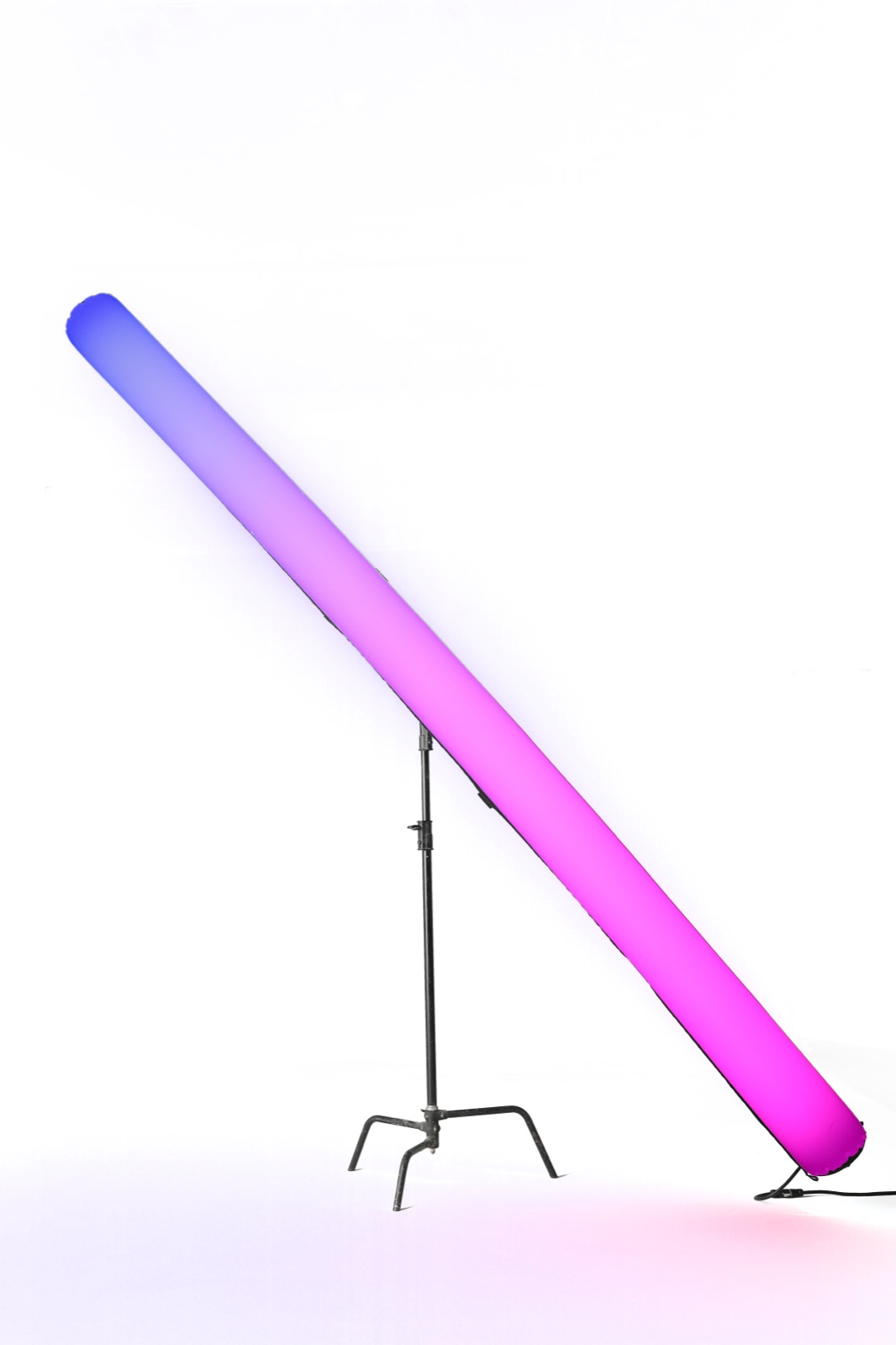

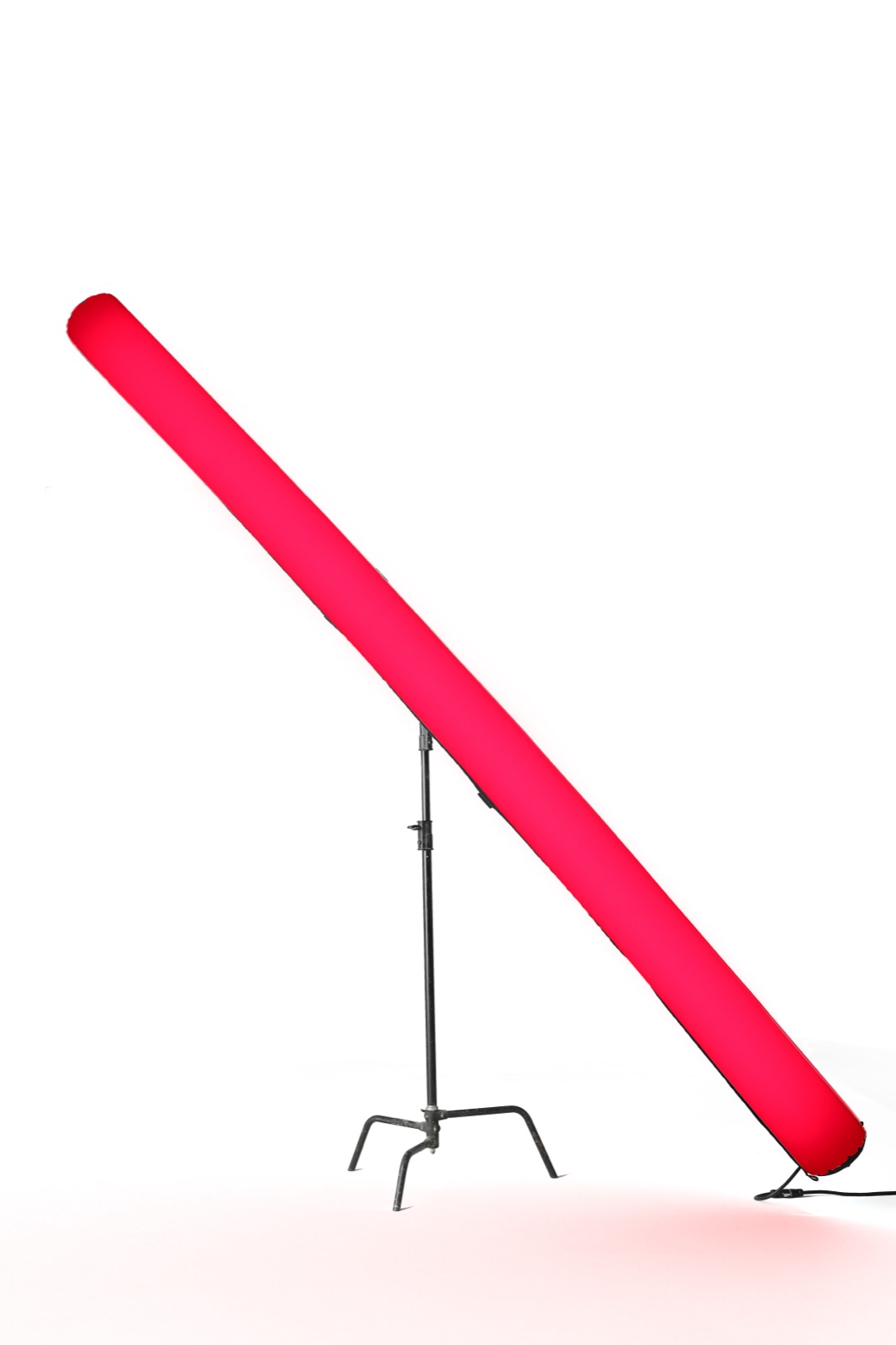

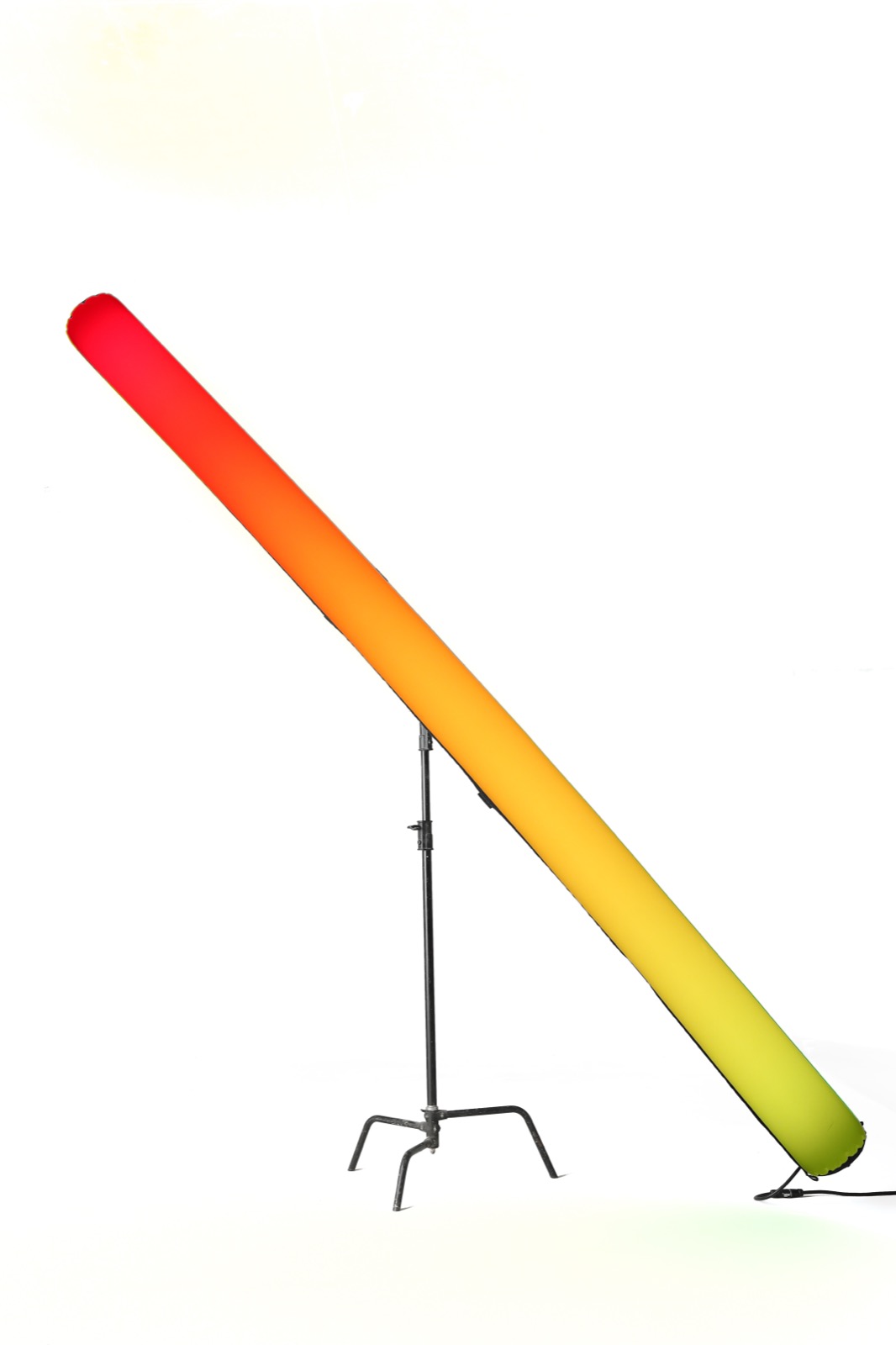

Air Lux MAX M116C

1 ft × 16 ft380 WRGBWW pixelCRI 95 / TLCI 952,700–10,000 KLumenRadio

Buy M116C MAXAU & NZ pricing and stock at the Litepix store

MAX series manual (PDF) DMX profiles (PDF) Brochure (PDF) Control app

Sold in Australia & New Zealand by Litepix · Contact us

Specifications

Model	M116C MAX
Size	1 ft × 16 ft
Power	380 W
Light source	RGBWW full-colour pixel LED
CCT range	2,700–10,000 K adjustable
Colour rendering	CRI 95 / TLCI 95
Dimming	0–100% smooth brightness adjustment
Control	Wireless & wired DMX remote control, APP control, LumenRadio built-in
Colour tools	XY-axis color picking function
Power supply	AC 100–240 V

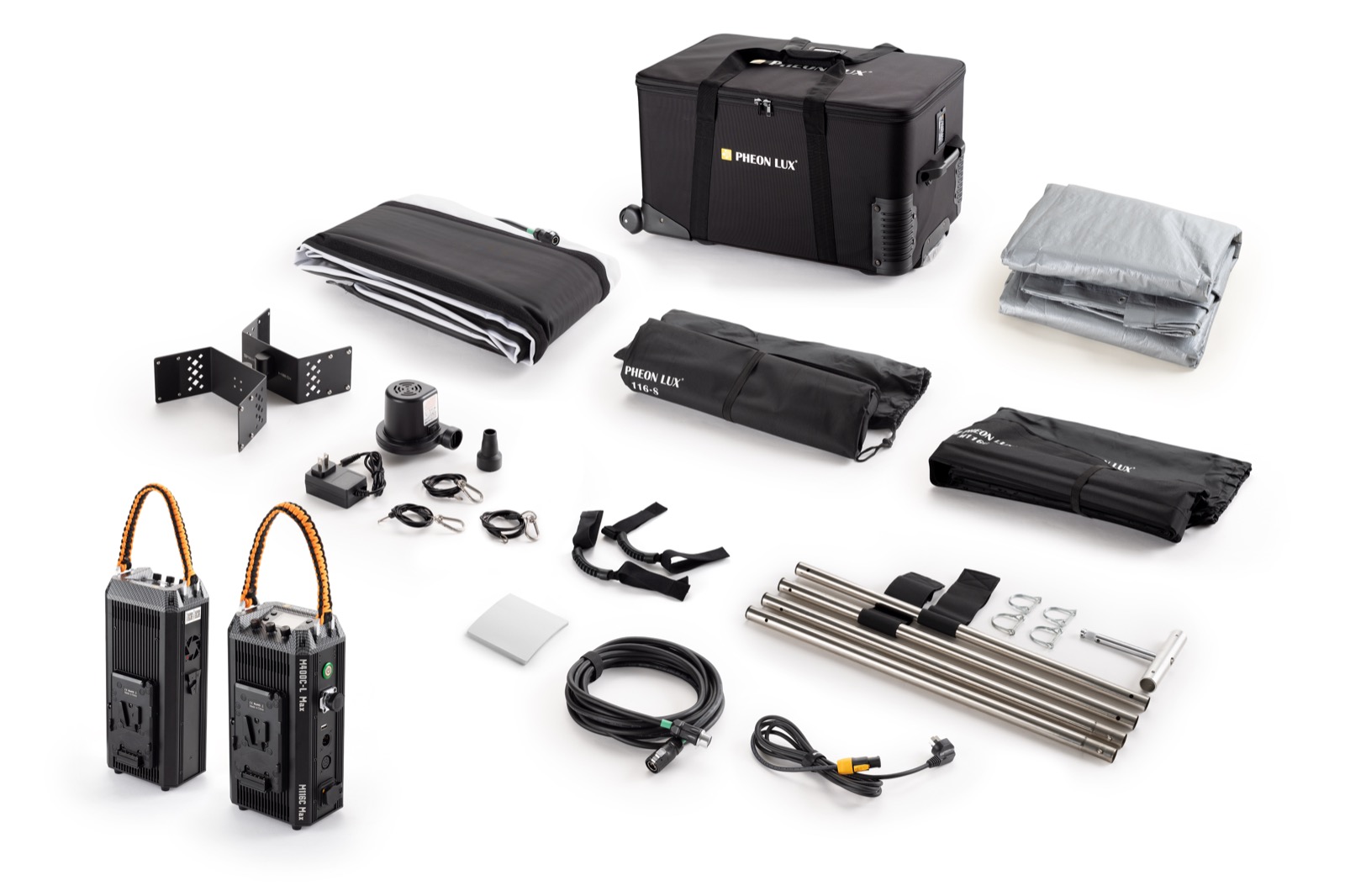

What's included

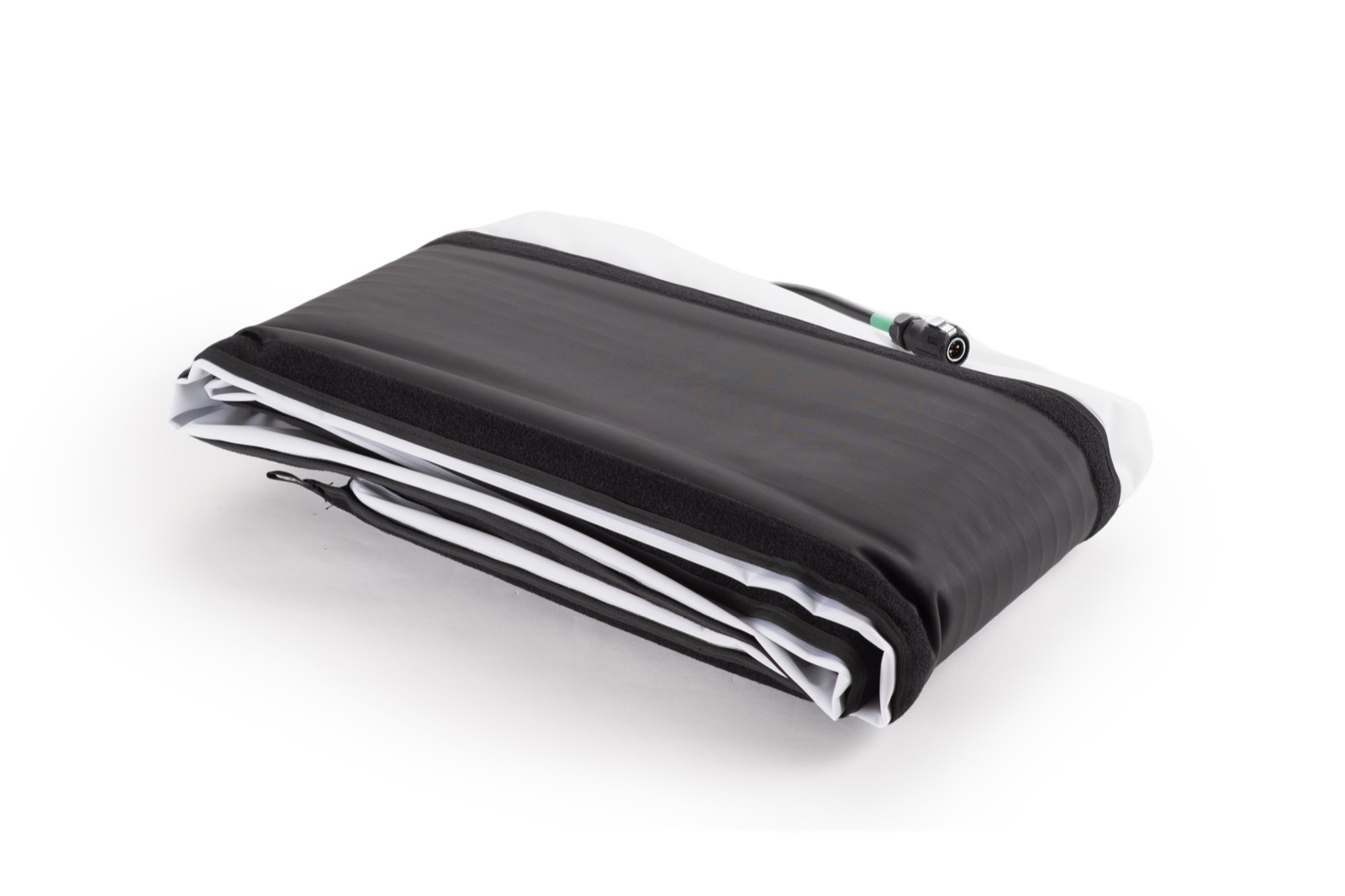

1× light

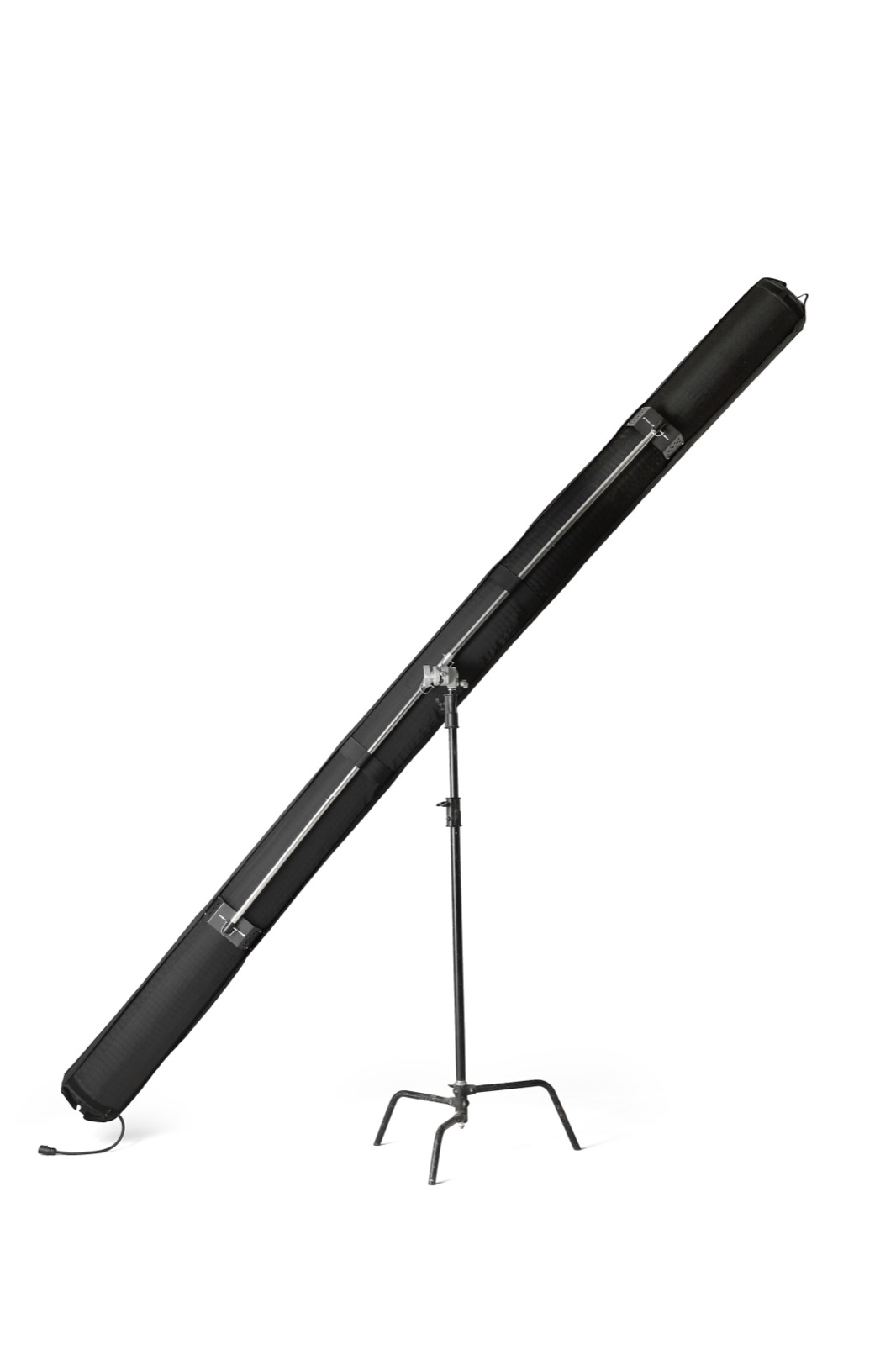

1× quick light stand

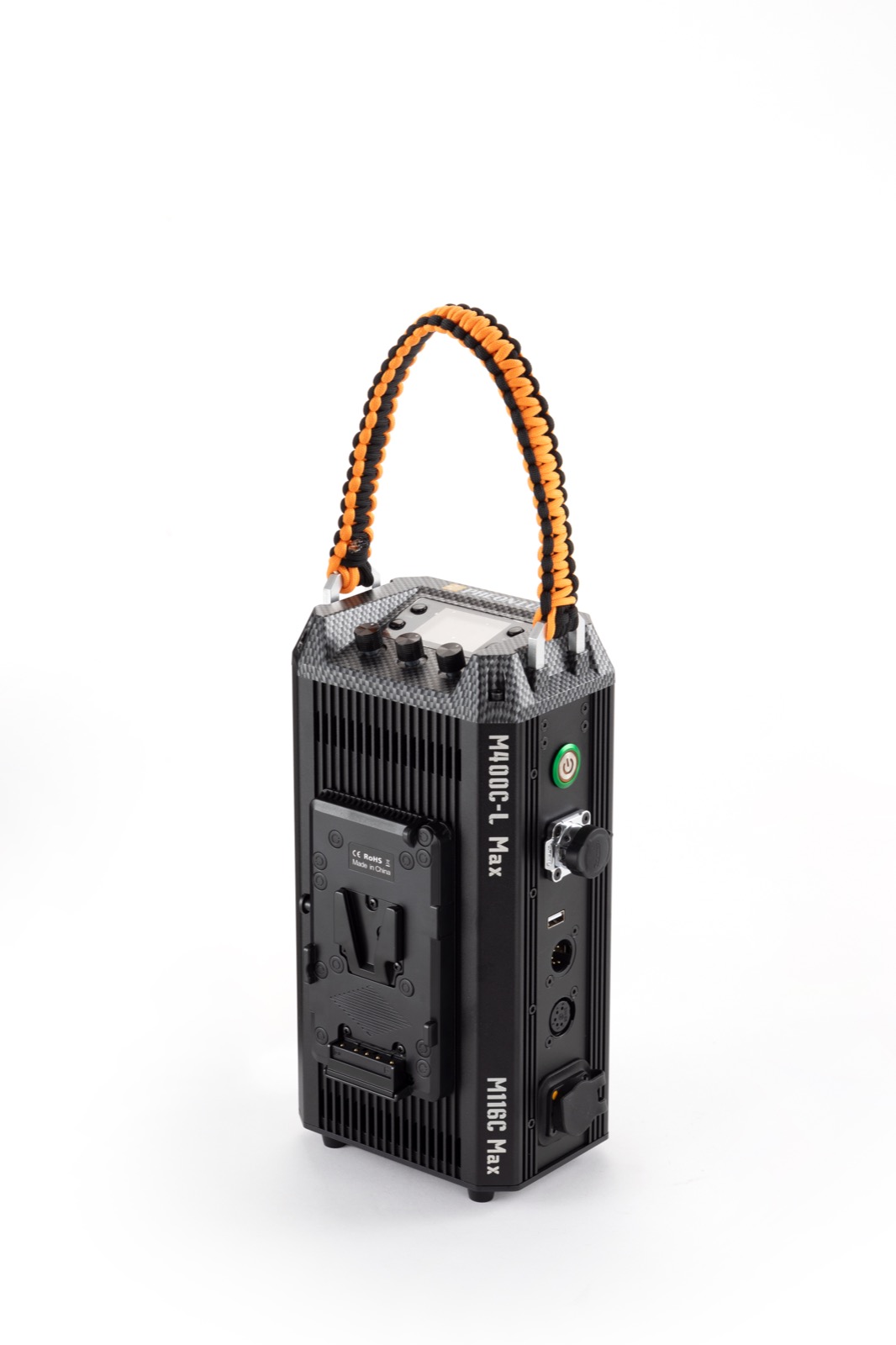

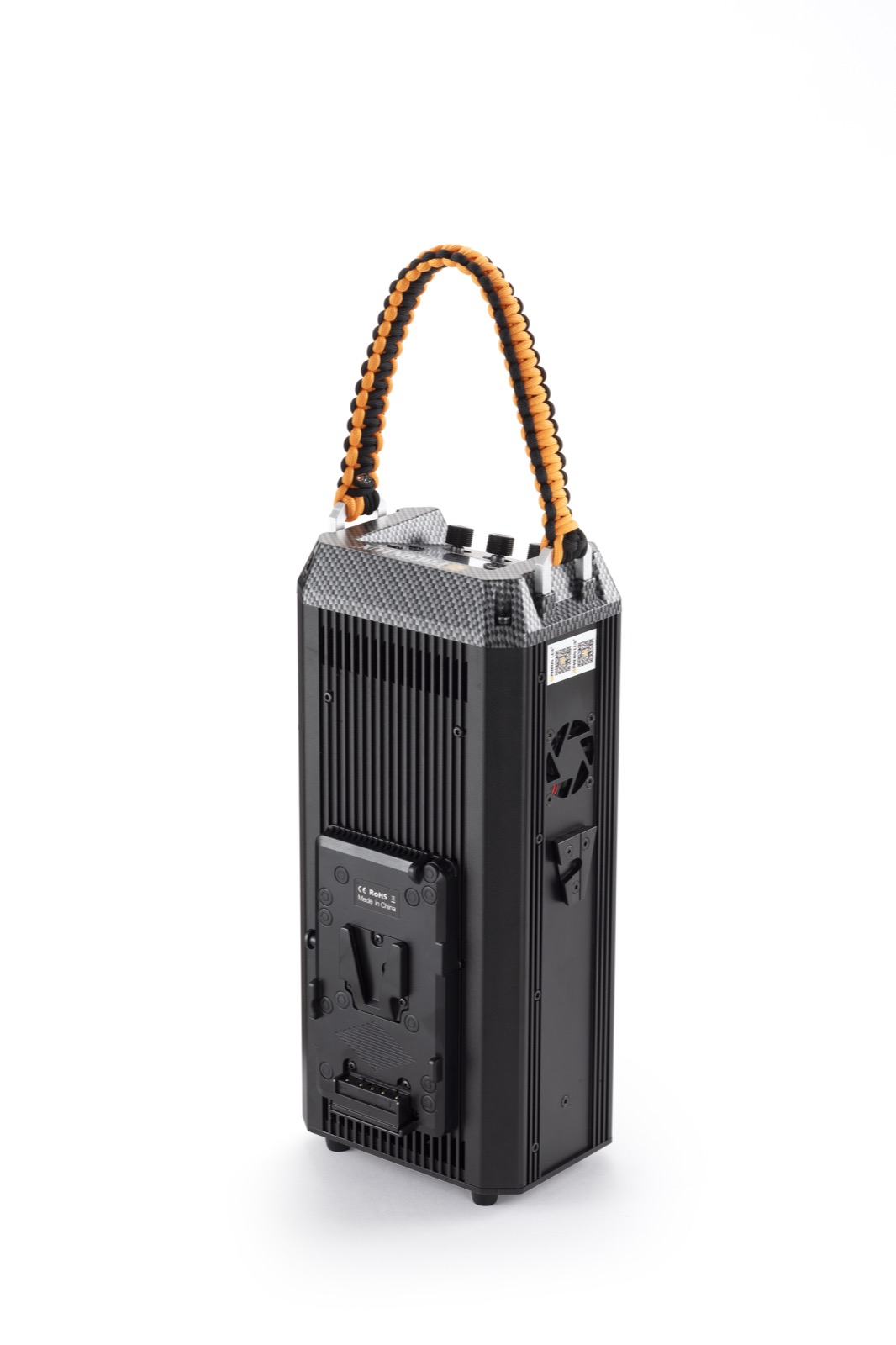

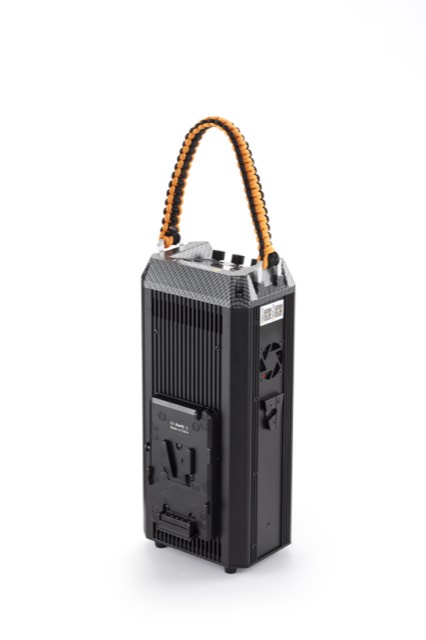

1× controller
1× strap

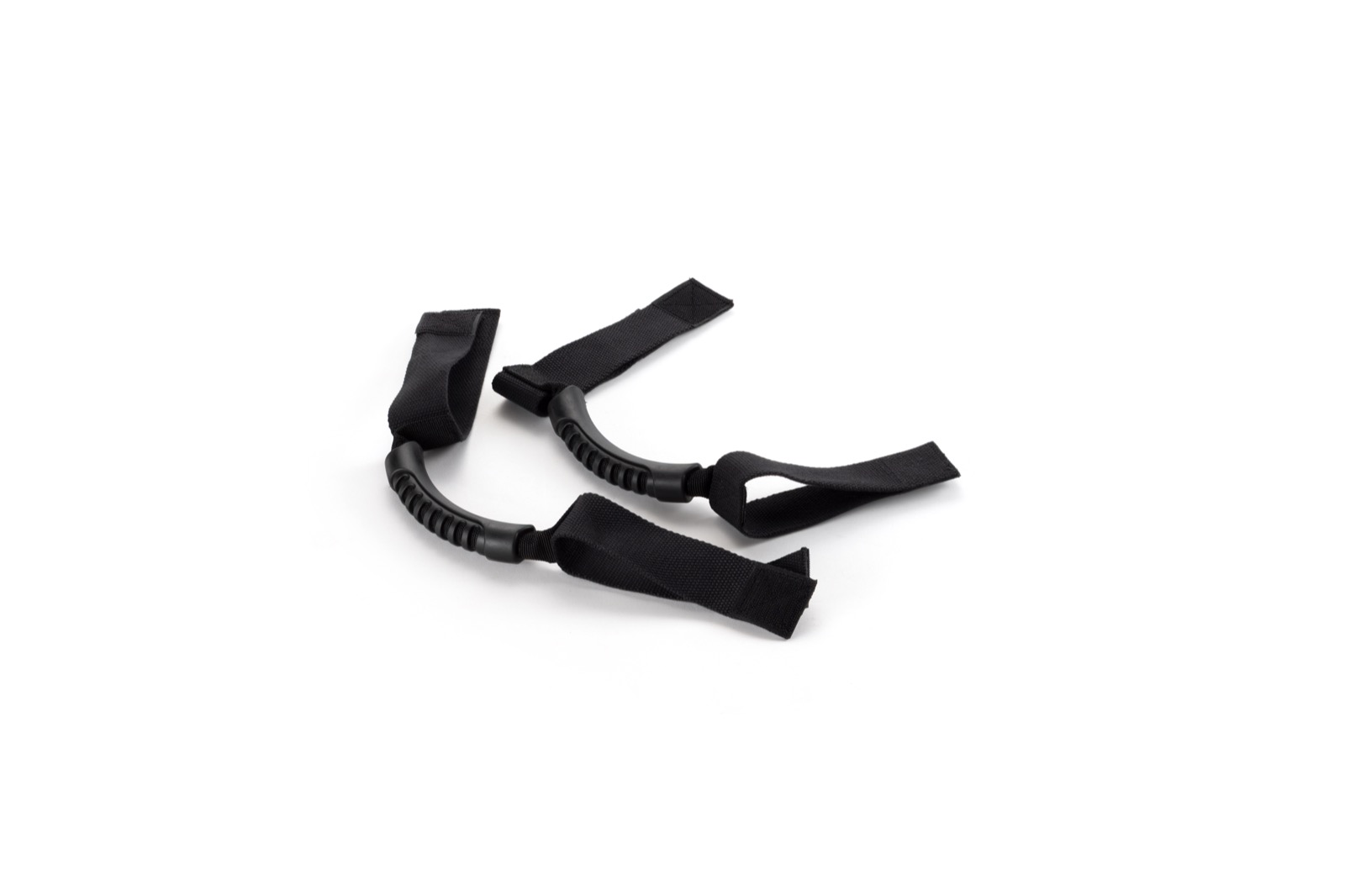

1× velcro handle

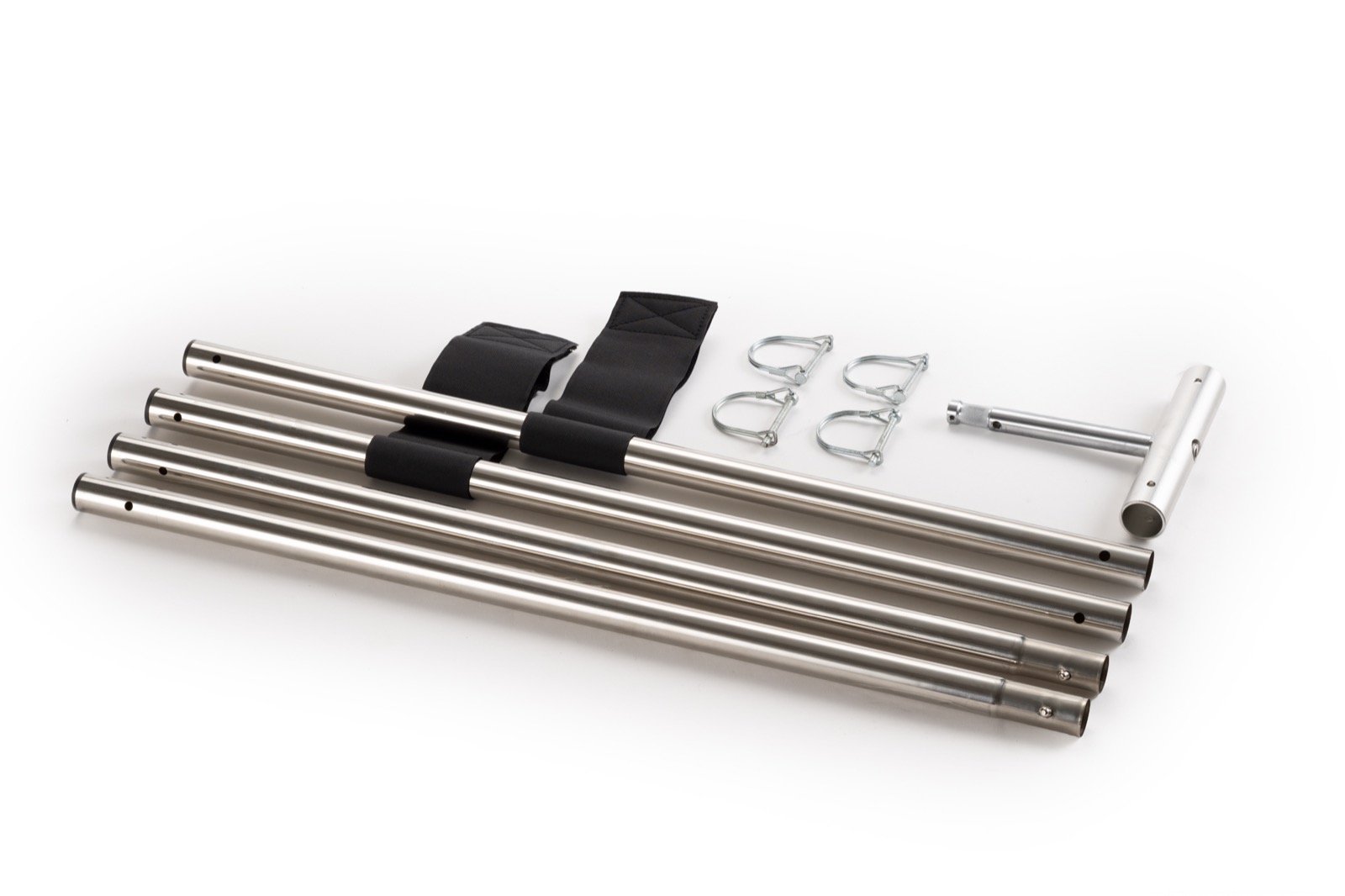

1× carbon fibre frame

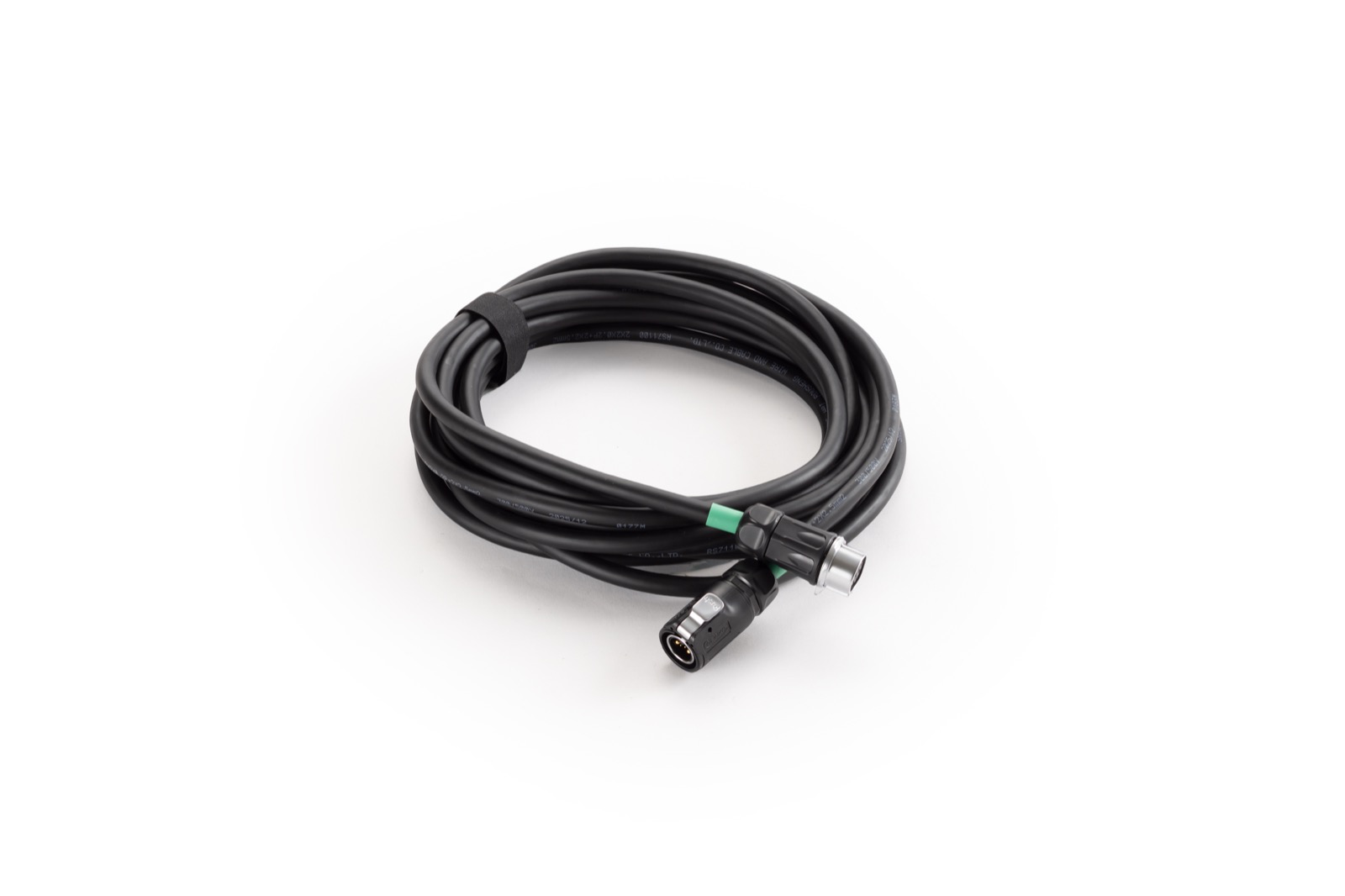

1× 7 m signal cable
1× power cable

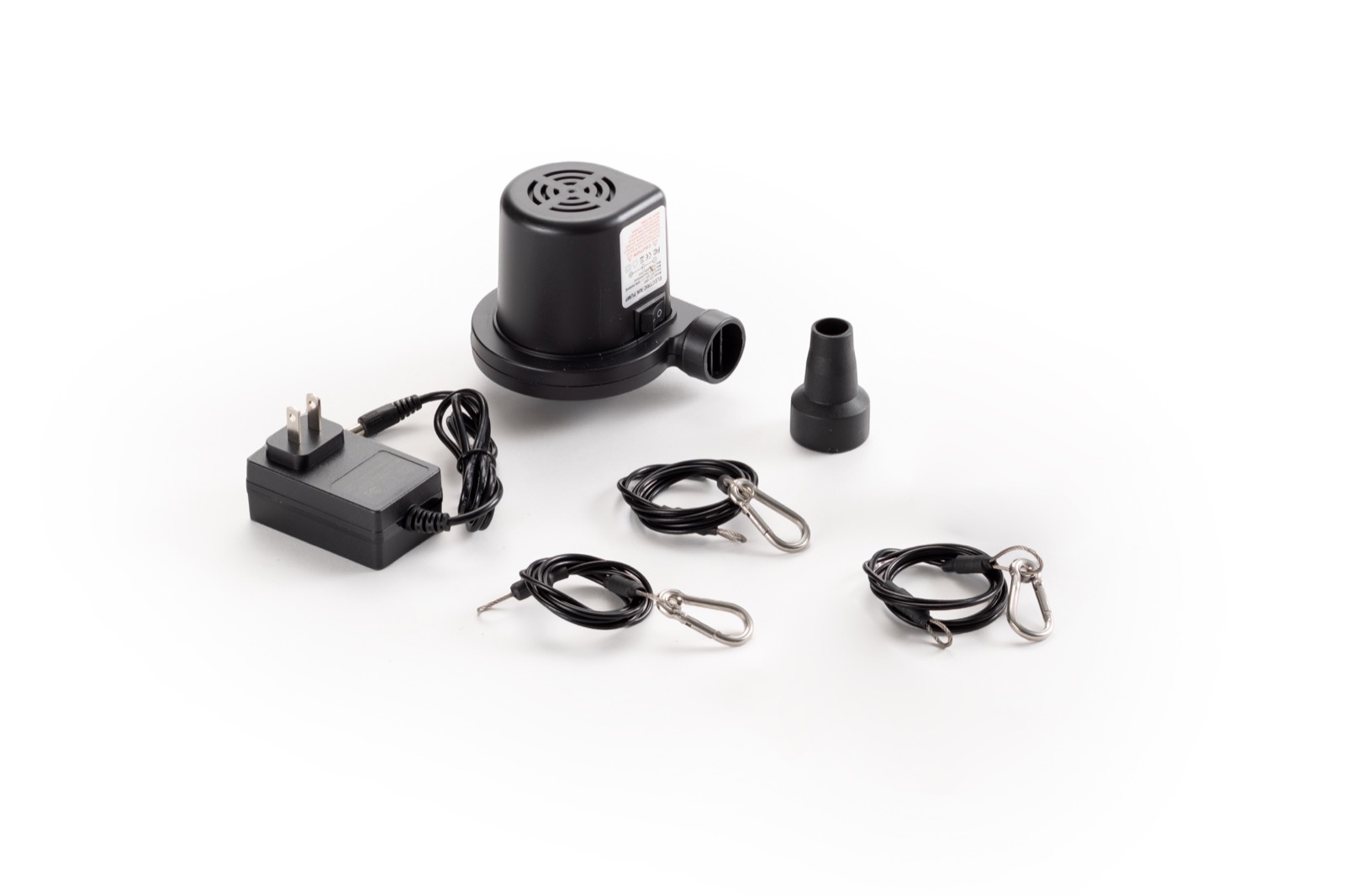

1× air pump

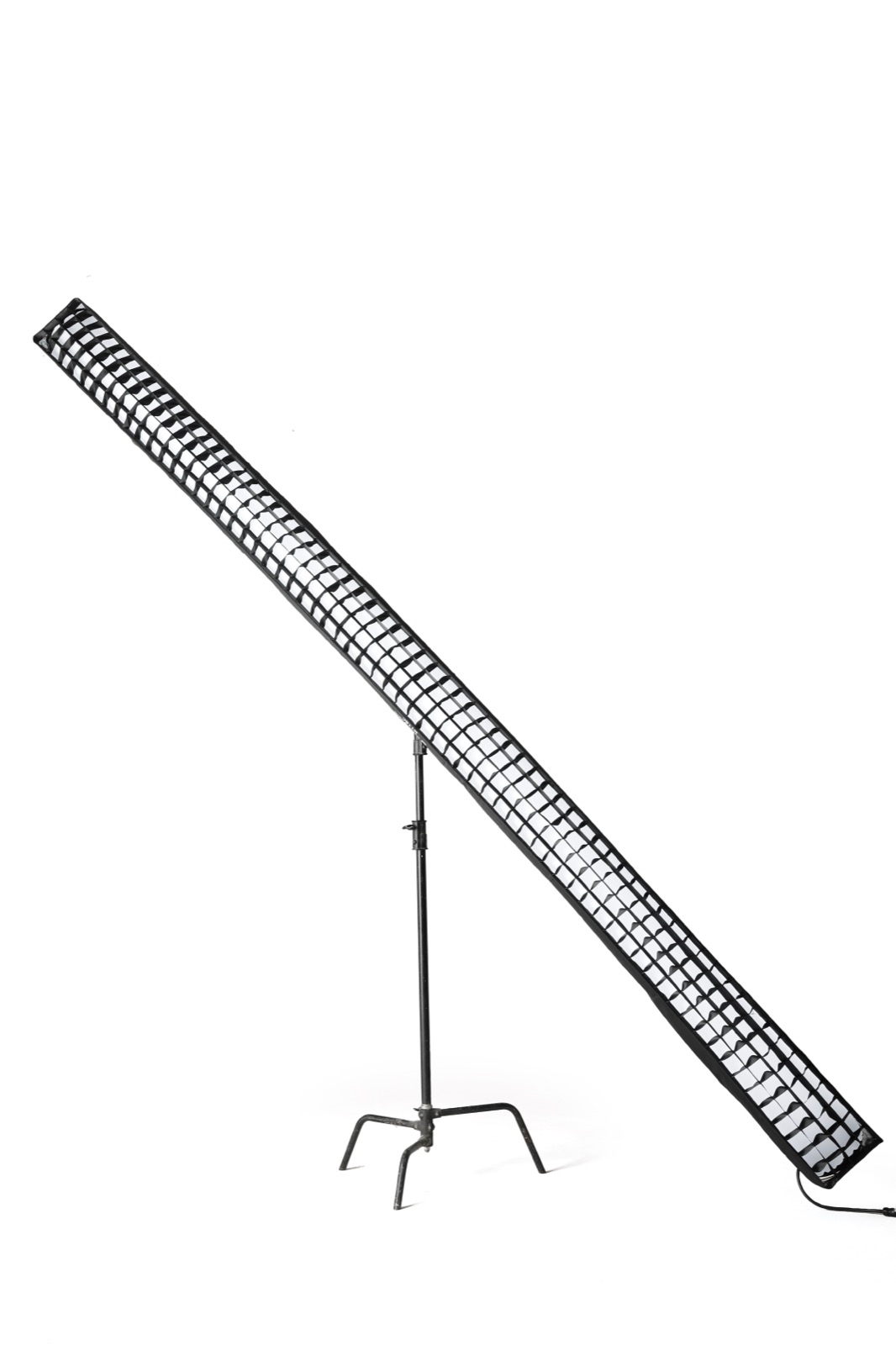

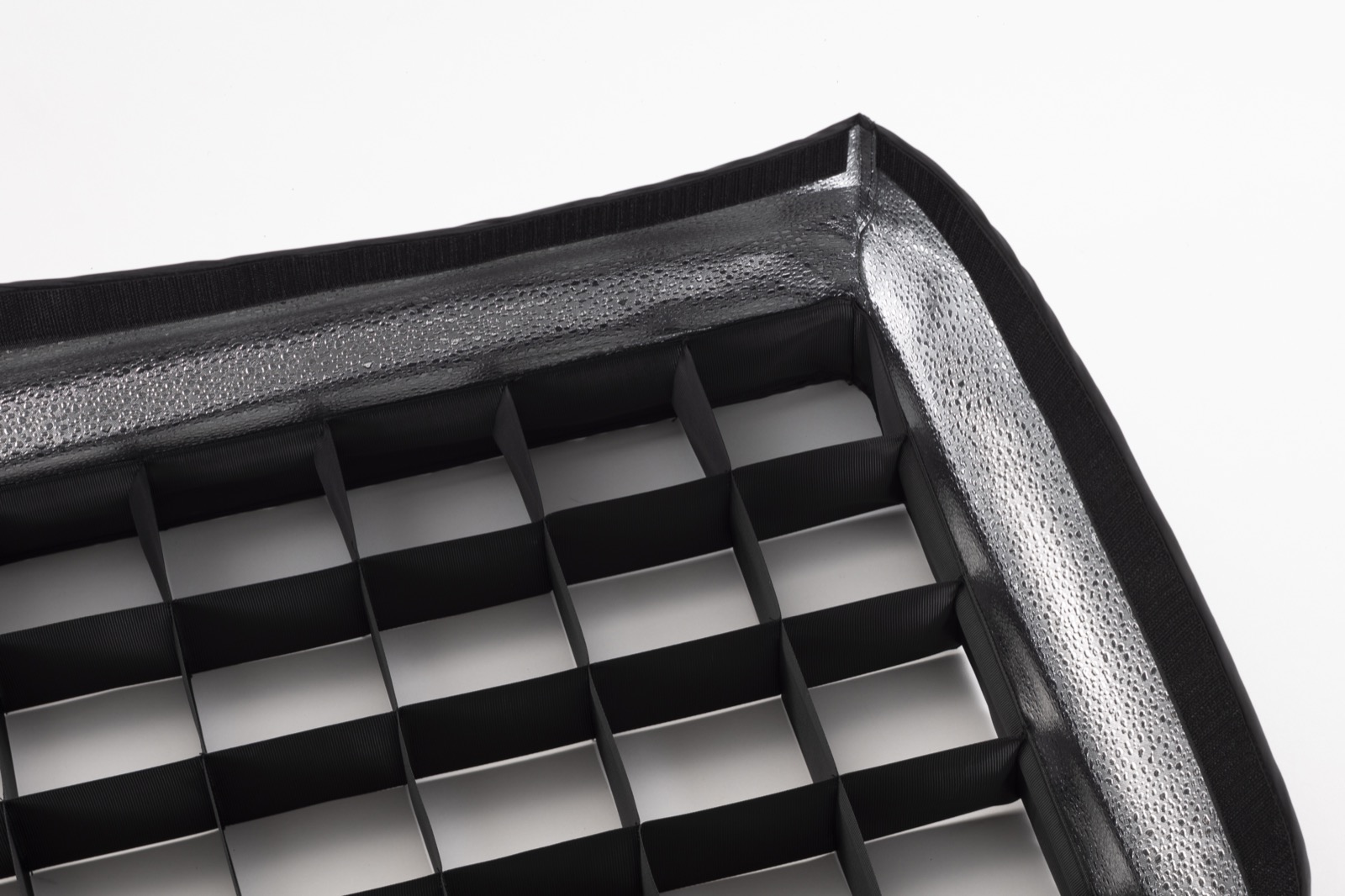

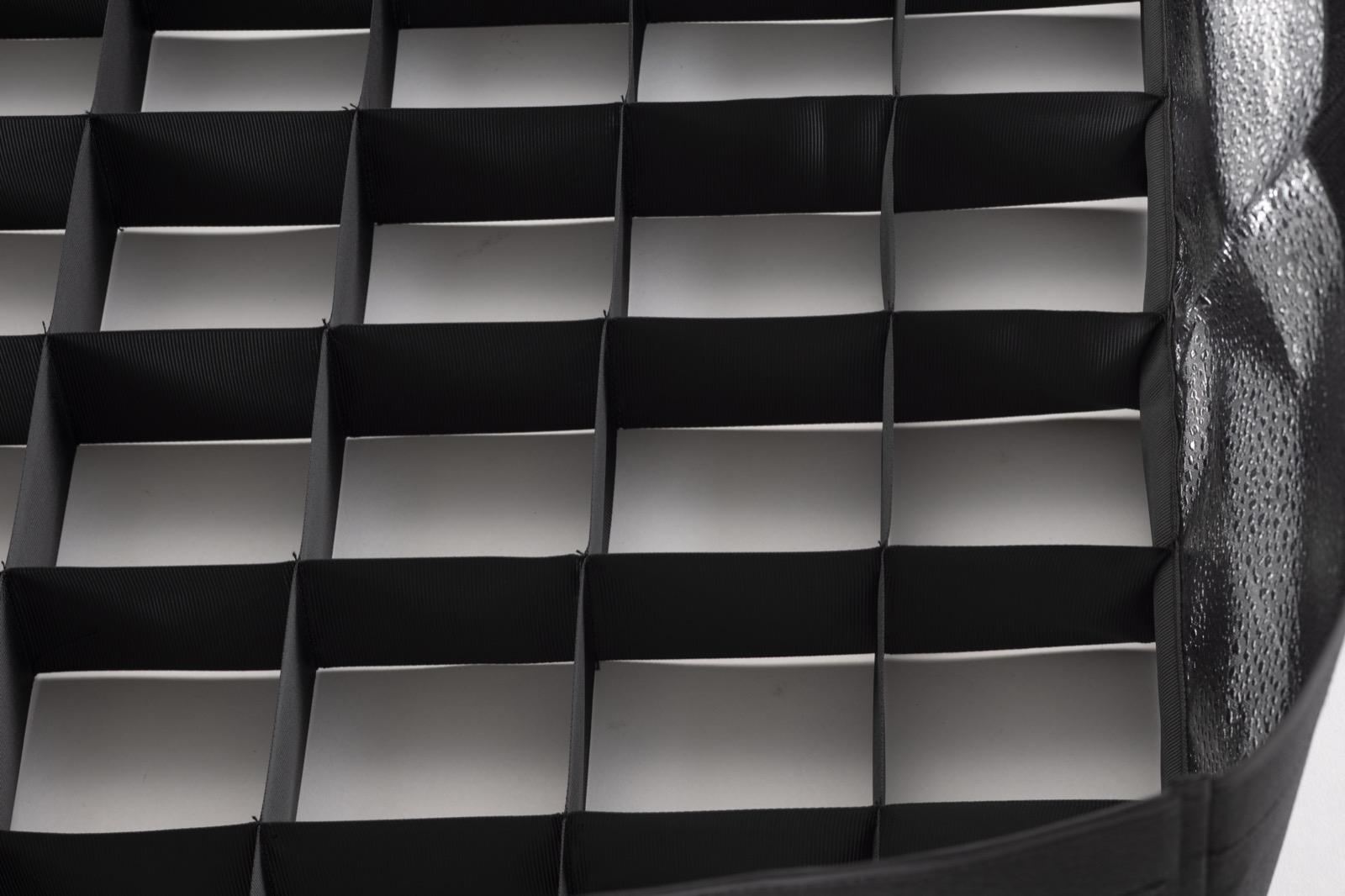

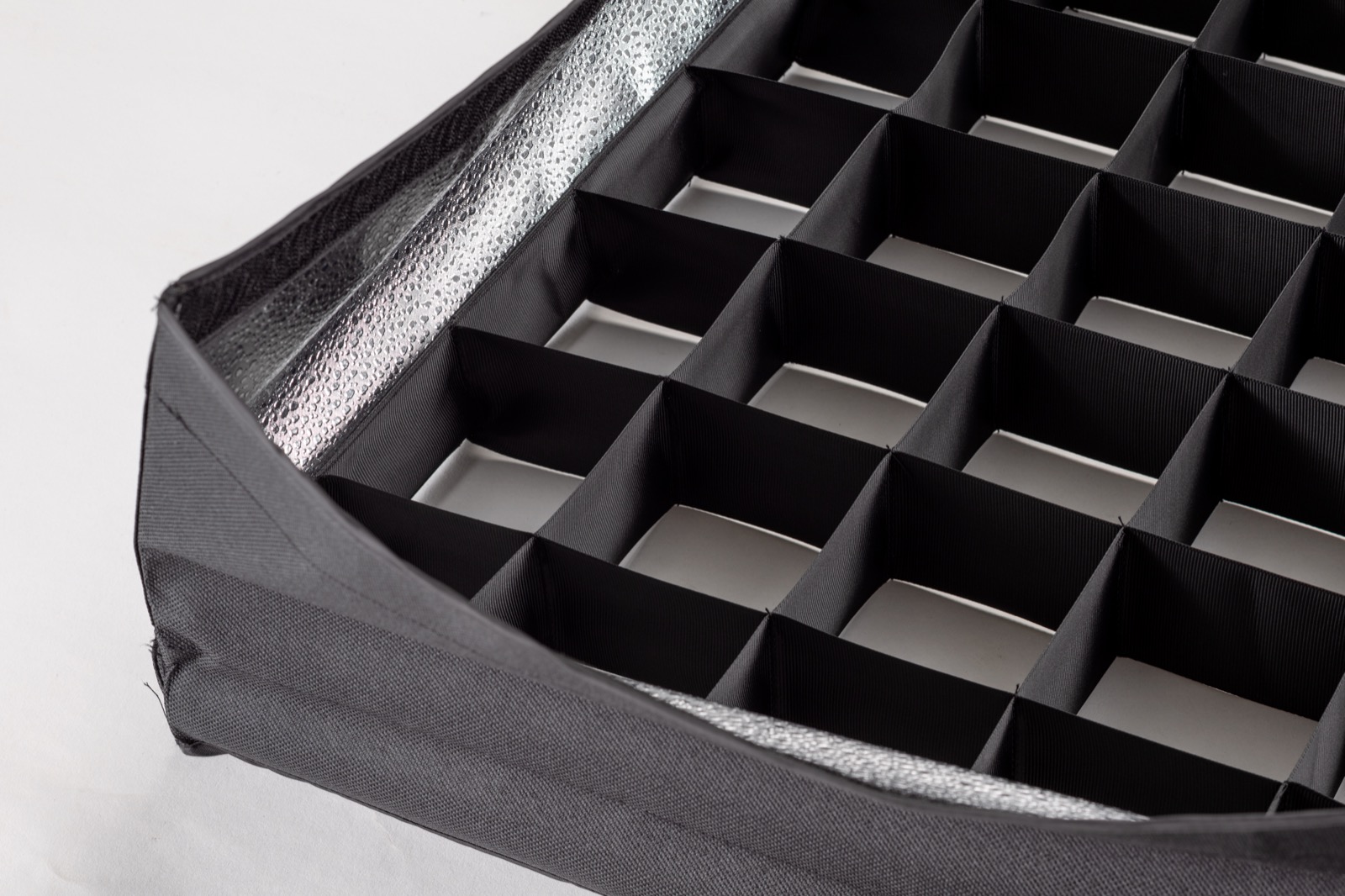

1× eggcrate

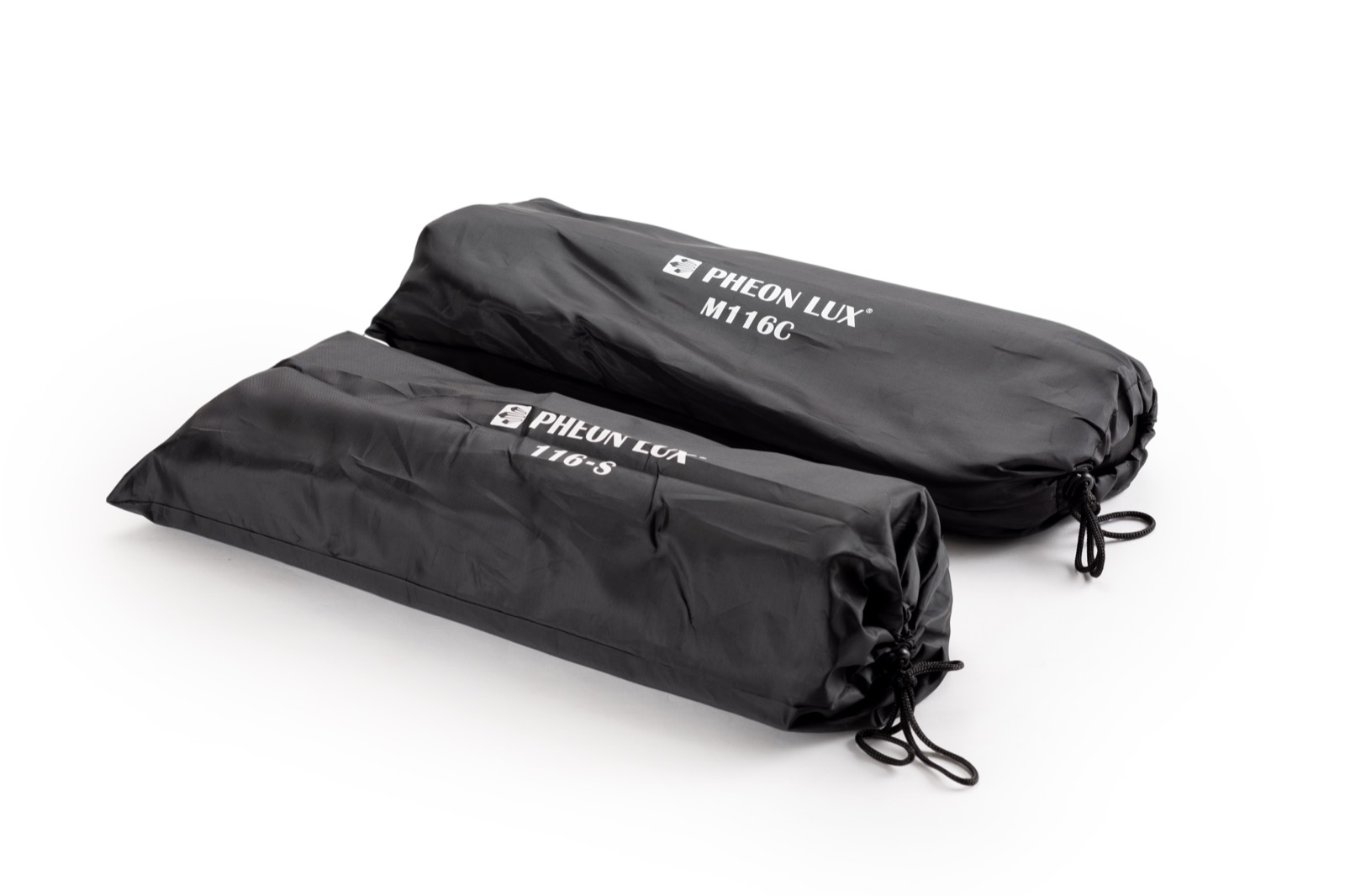

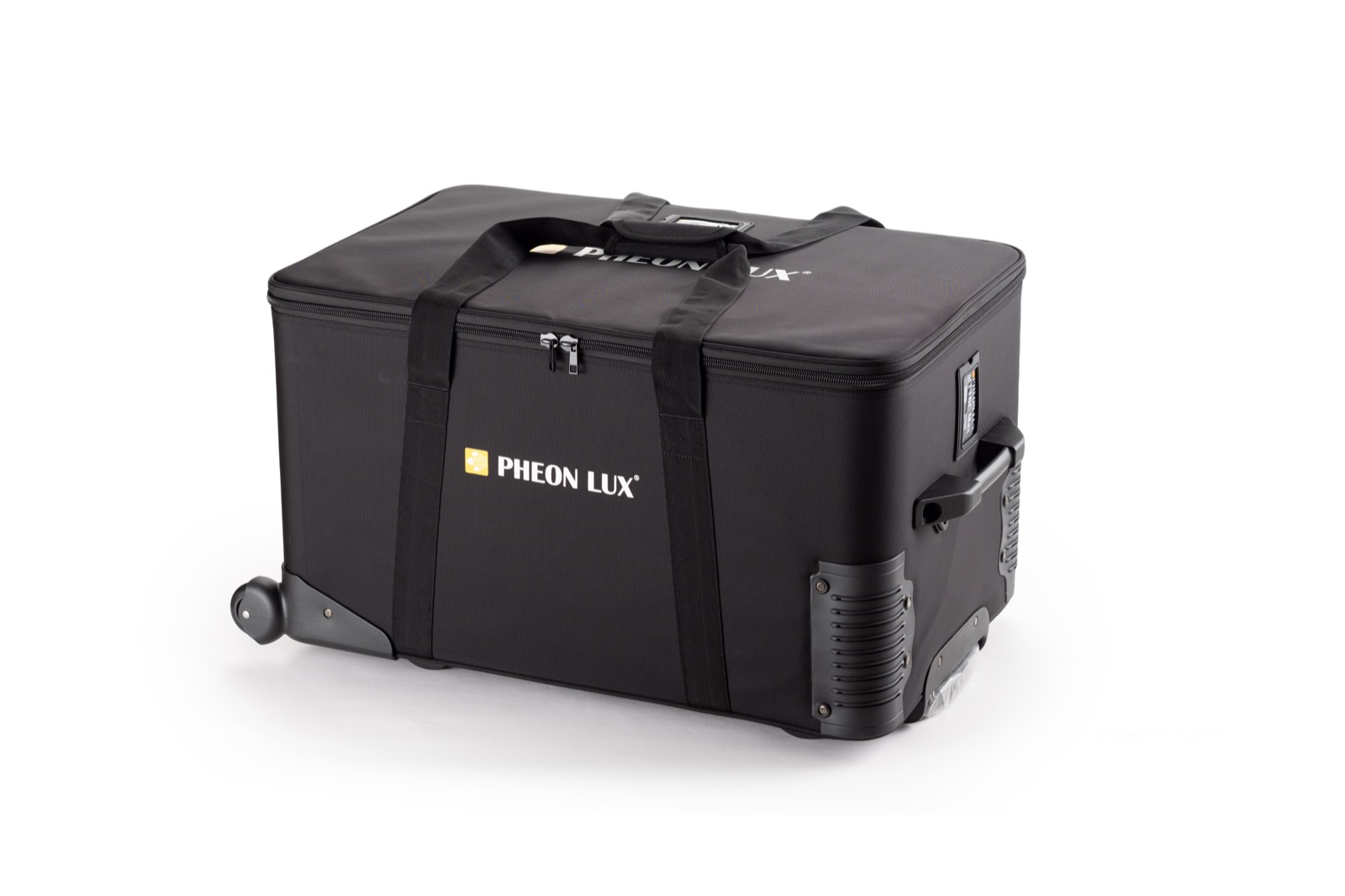

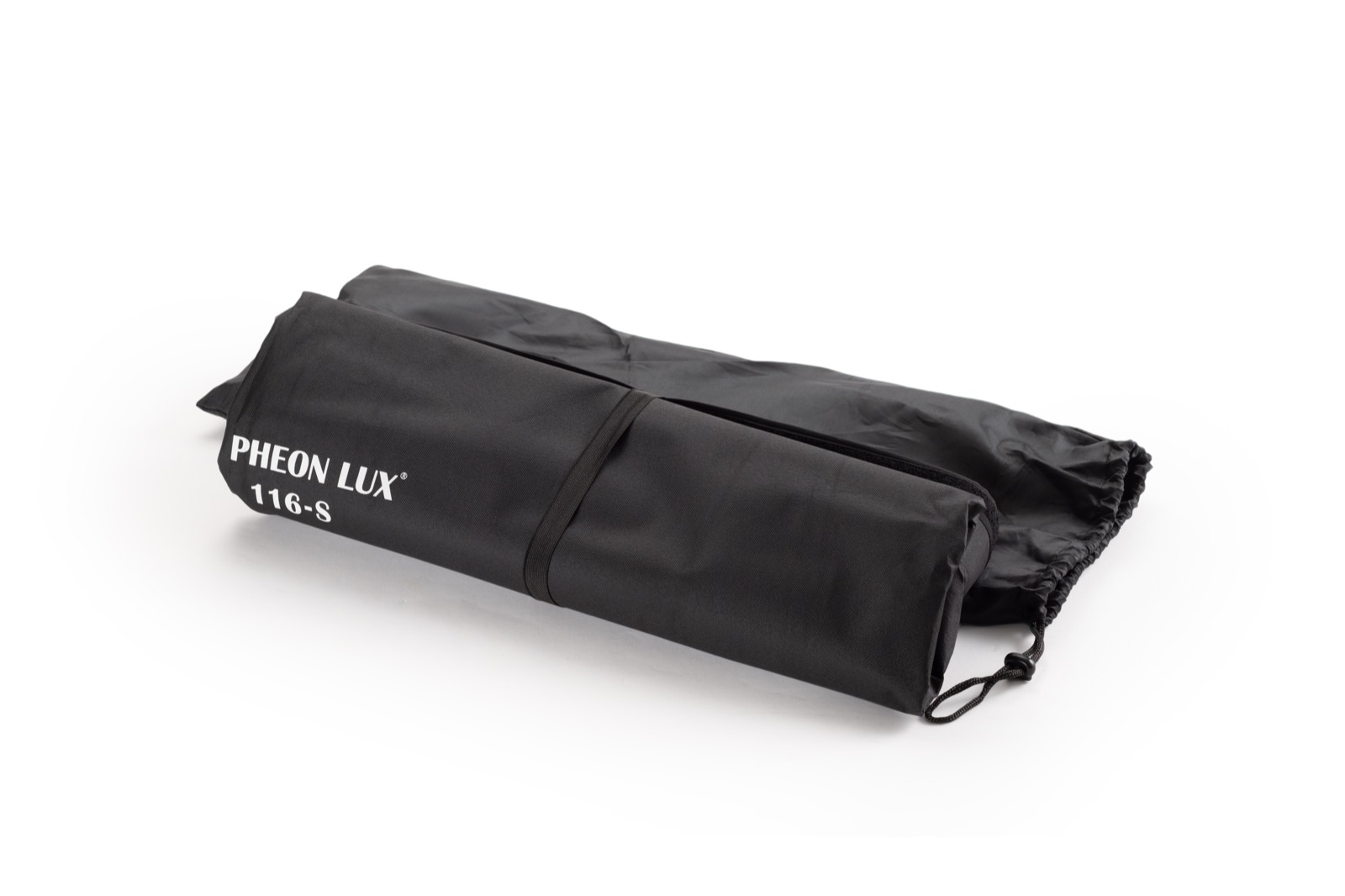

1× bag

Every MAX, by size

One light engine, eleven formats. See the full series

M22C MAX2 ft × 2 ft95 W M14C MAX1 ft × 4 ft95 W M24C MAX2 ft × 4 ft185 W M18C MAX1 ft × 8 ft185 W M44C MAX4 ft × 4 ft380 W M28C MAX2 ft × 8 ft380 W

M116C MAX1 ft × 16 ft380 W

M128C MAX1 ft × 28 ft760 W M48C MAX4 ft × 8 ft760 W M216C MAX2 ft × 16 ft760 W M88C MAX8 ft × 8 ft1,780 W

PHEON LUX introduces the Air Lux MAX generation of full-colour pixel inflatable lights. Compared with the Air Lux II series, luminous flux is increased by 95% at the same 1 m distance and power output is enhanced by 10–15%, with a new XY-axis color picking function for precise colour selection.
