Panel Light Series
Panel Light L Series
L80C · 1×1 ftL160C · 1×2 ftL180CRGBWW1,700–20,000 KCRI 95 / TLCI 95
Sold in Australia & New Zealand by Litepix · Contact us
Compact RGBWW pixel panel lights with built-in LumenRadio, an ultra-wide 1,700–20,000 K colour temperature range and switchable hard/soft light output — available in 1×1 ft (L80C), 1×2 ft (L160C) and the larger L180C.
L80C
| Size | 1 ft × 1 ft |
| Power | 80 W |
| Light source | RGBWW LED |
| CCT range | 1,700–20,000 K dimmable |
| Colour rendering | CRI 95 / TLCI 95 |
| Dimming | 0–100% brightness adjustment |
| Control | Built-in LumenRadio, wired DMX, PHEONLUX LINK APP |
| Power supply | AC 100–240 V |
| Includes | Light fixture, diffuser, grid, adapter (one set for each of 2 versions), adapter bracket, black carrying case |

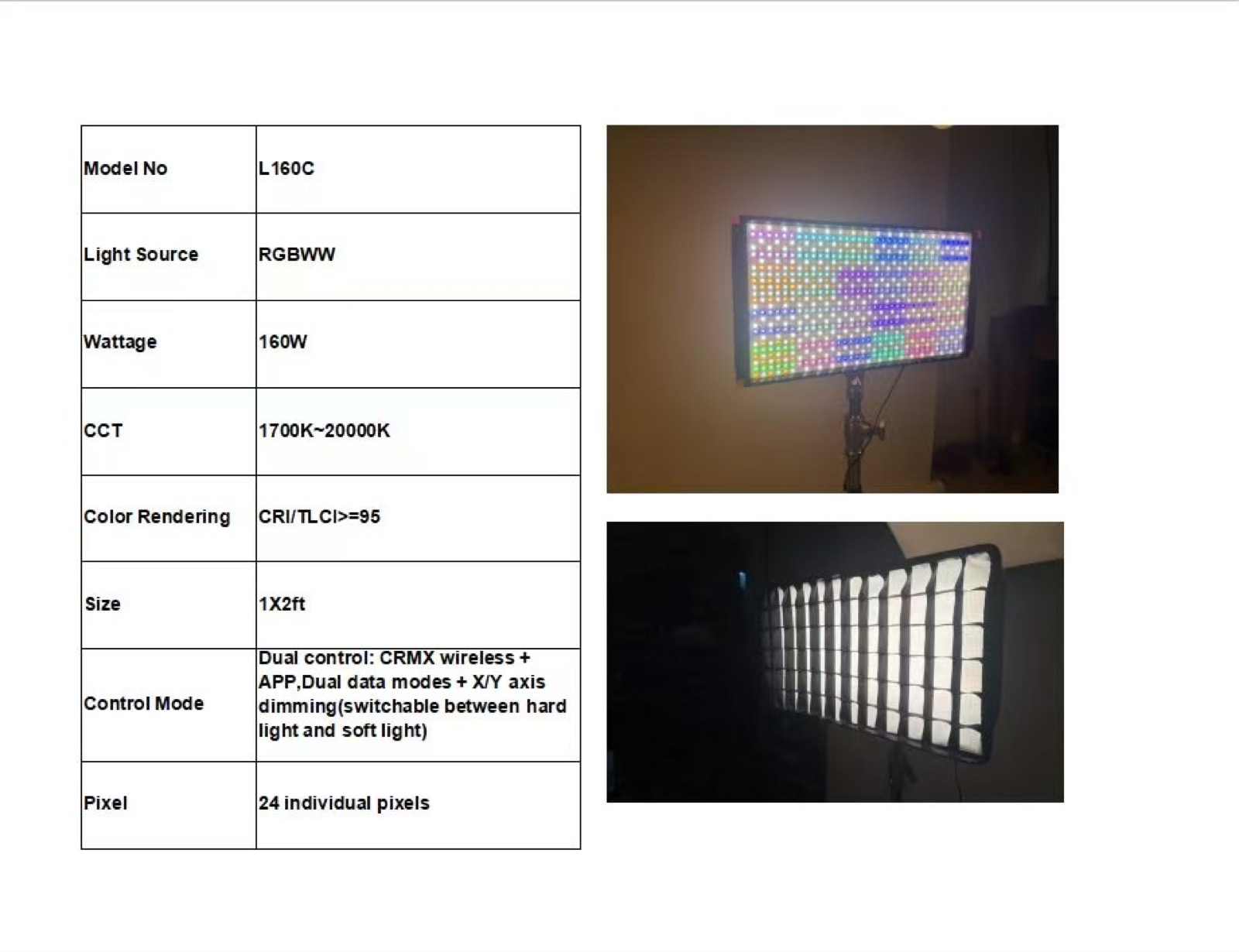

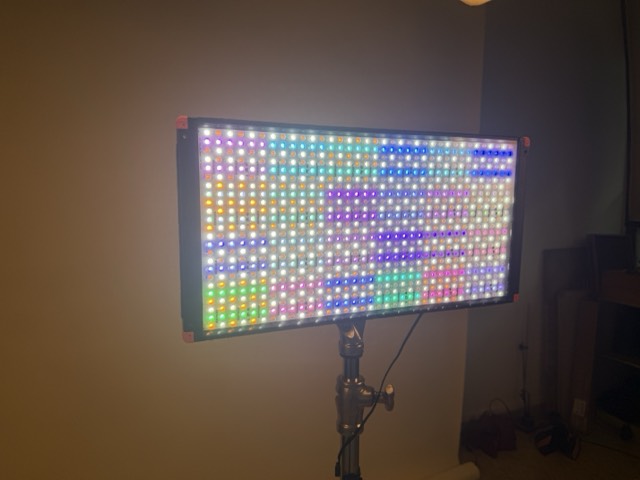

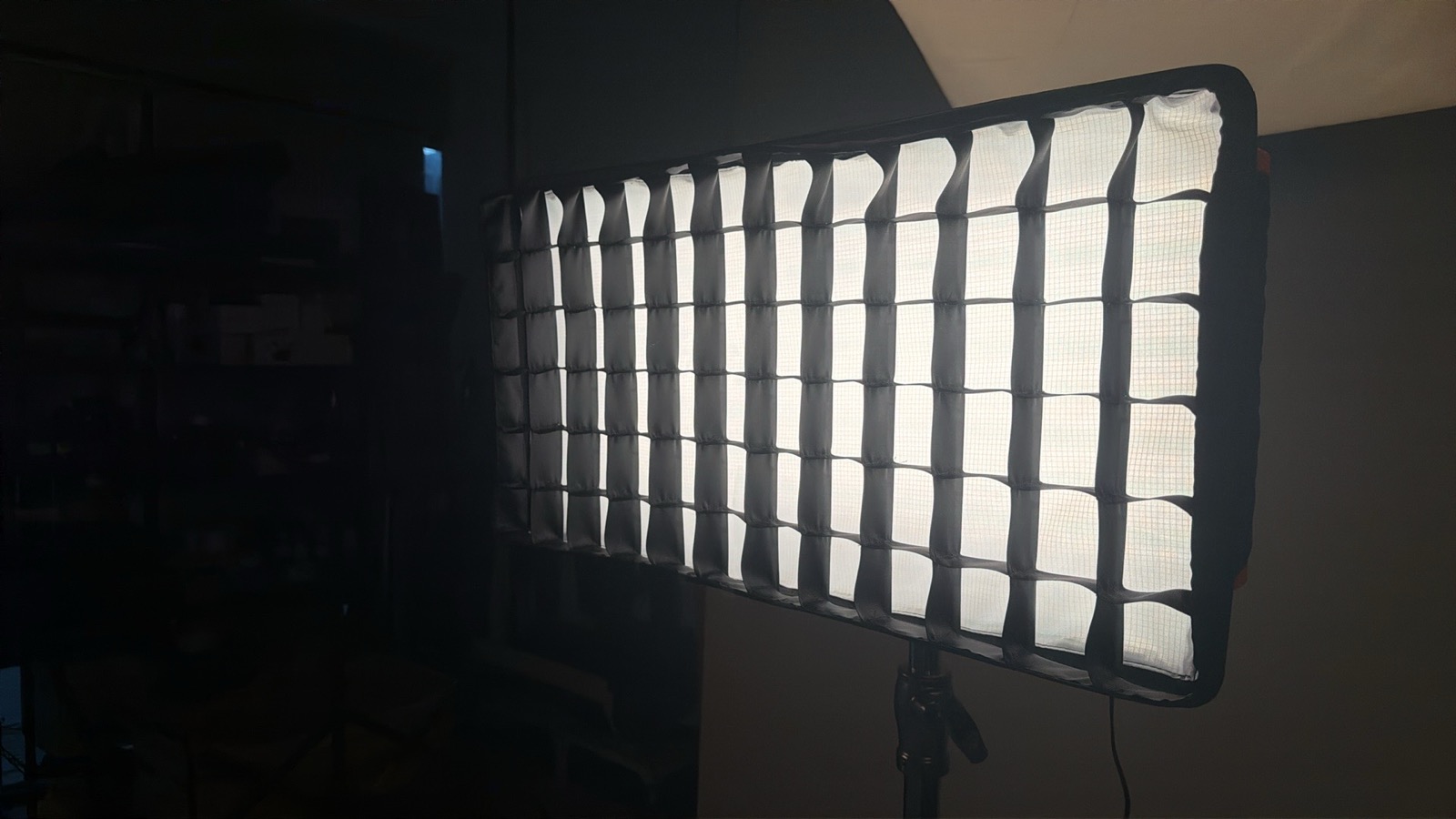

L160C
| Size | 1 ft × 2 ft |
| Power | 160 W |
| Light source | RGBWW LED — 24 individual pixels |
| CCT range | 1,700–20,000 K dimmable |
| Colour rendering | CRI/TLCI ≥ 95 |
| Dimming | 0–100% brightness adjustment |
| Control | Dual control: CRMX wireless + APP; dual data modes; X/Y-axis dimming (switchable hard/soft light) |
| Power supply | AC 100–240 V |
| Includes | Lamp, diffuser, grid, converter heads (one set each of 2 versions), adapter, adapter bracket, black box |
