antPIX
$808.50 inc GST
antPIX

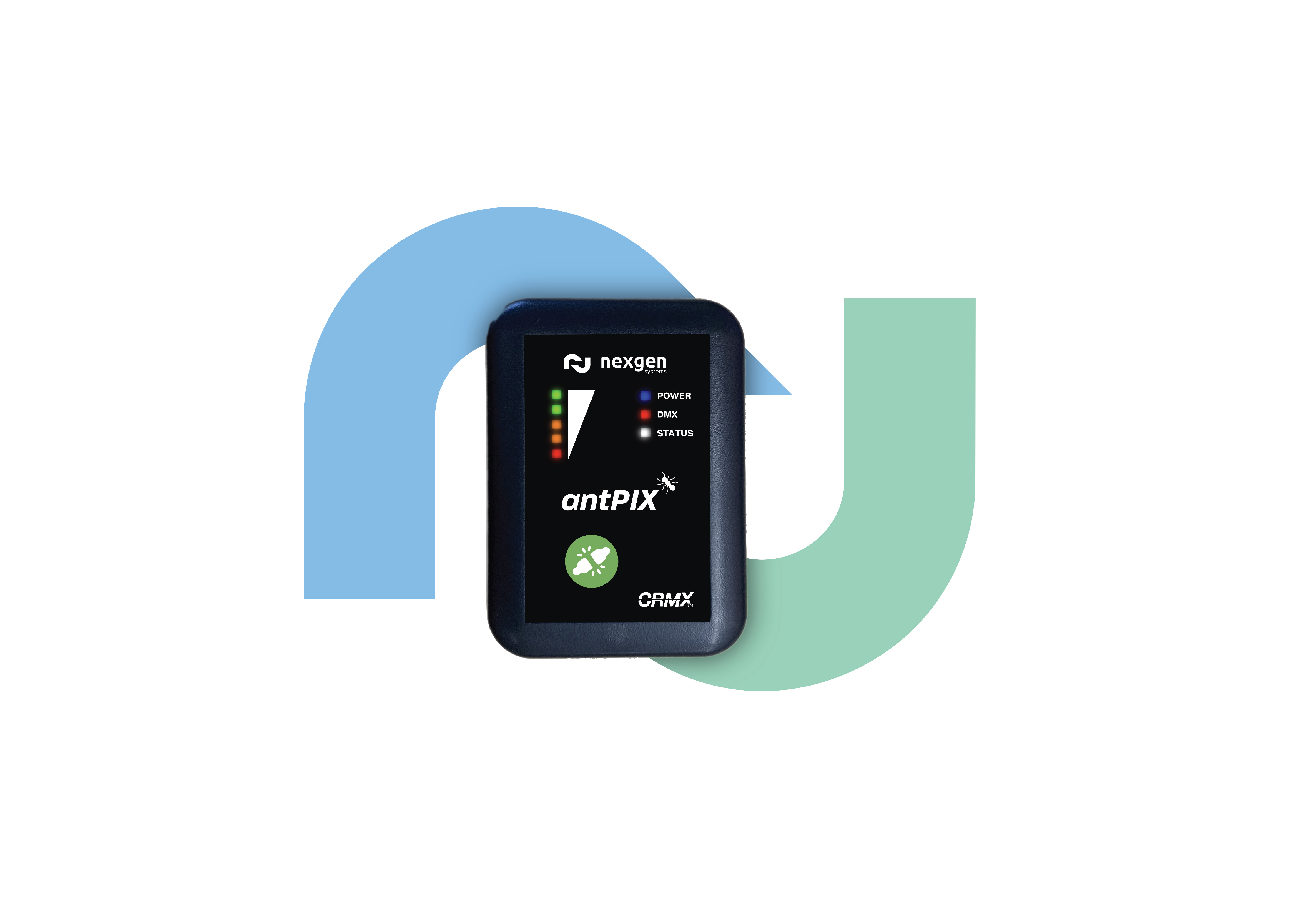

The antPIX is a tiny wireless DMX pixel controller utilising the CRMX platform.
- Controls two separate outputs up to 1024 LEDs each.
- Configured via a webpage that allows the user to:a) Configure outputs / Pixel ic types
b) Pixel grouping / Quantities of LEDs
c) Link and unlink of CRMX with Transmitter
The antPIX can also be used as a wireless DMX receiver via the 3.5mm jack connector.
In stock (can be backordered)
The antPIX is a small wireless controller for pixel LEDs utilising the LumenRadio CRMX system antPIX can control two separate outputs up to 1000 pixels long using pixel grouping to a total of 170 individual RGB pixels, users set the pixel type, DMX address, and other settings via a webpage meaning no software or complicated setups.
The antPIX supports all common protocols, including WS2801, WS2812, APA102, LPD8806, MY9231 and many more.
Firmware updates can be done via the web interface making more protocols and features available in the future
The antPIX also includes a DMX output port via 3.5mm adaptor making it useful as a DMX RX unit as well as a pixel controller.
CRMX Devices utilizes the International licence free ISM band on 2.4GHz
Physical
- Weight 100g
- Dimensions L x W x H – 70mm x 50mm x 22mm
RF Aspects
- Tested link range 500m line of sight
- Frequency range 2402-2480 MHz
Connections
DMX : 3.5mm jack connector to 5pin (3.5mm to 5pin DMX cable sold separately)
Power : 5V-24V input via phoenix style connectors
Pixel output: 4pin phoenix style connector
